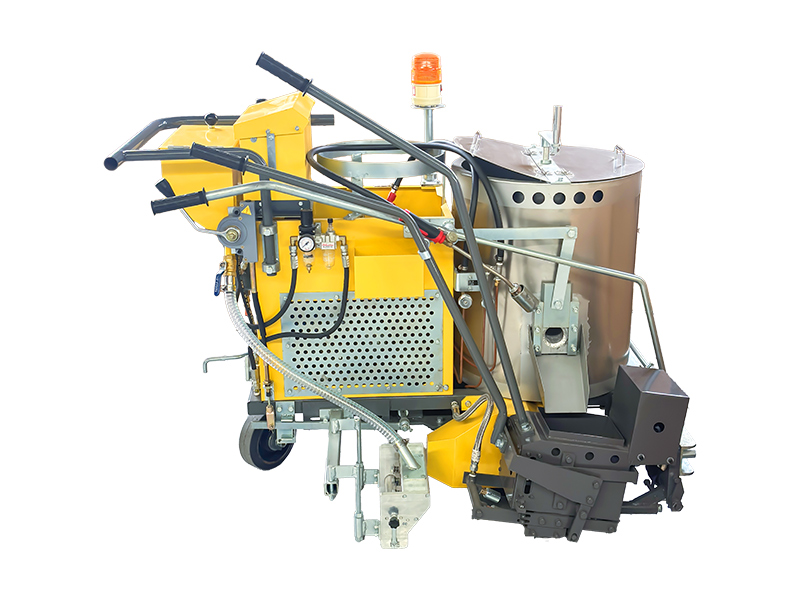

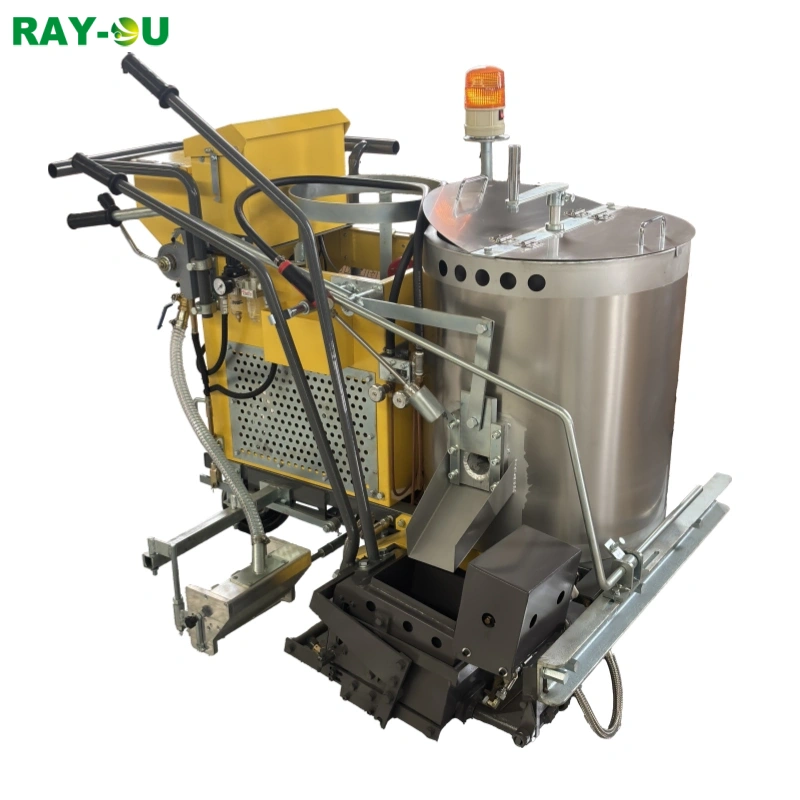

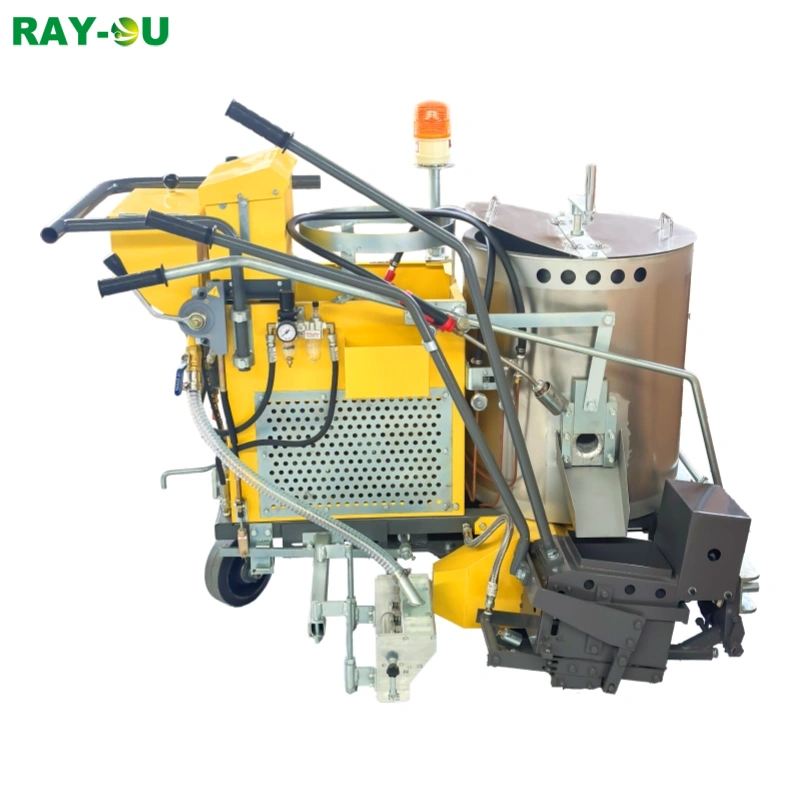

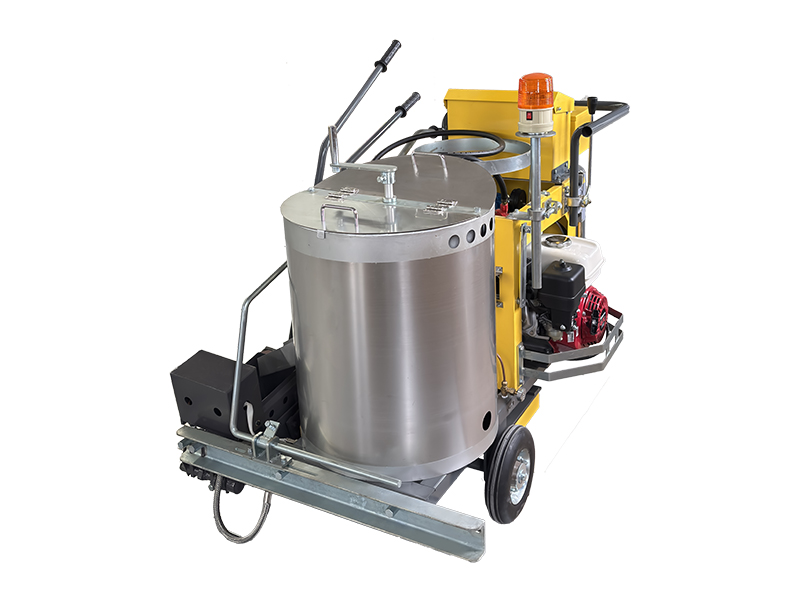

This machine is equipped with an air compressor for rapid application of thermoplastic rib line. Its hydraulic self-propulsion system features continuously variable transmission. Additionally, line parameters can be configured via the onboard computer, and traditional flat line marking can be performed after shutting down the computer.
Engine | Honda GX160 Gasoline Engine (5.5HP) |
Drive method | Hydraulic motor with continuously variable transmission (CVT) |
Travel speed | Forward 10km/h, reverse 6km/h, gradeability 15° |
Paint bucket capacity | 120kg |
Glass bead tank capacity | 15kg |
Glass bead spreader | Adjustable spreading width and density |
Stove fuel | LPG |
Protrusion height | 0-10mm |
Marking setting | Onboard computer |
Optional line width | 15,20,30,40,45cm |
Ground blade | Alloy-embedded ground blade |
Wheels | Metal hubs with heat-resistant rubber tires The rear wheel equipped with straight-line positioning device |
Dimension(LWH) | 1350 × 1100 × 1200 mm |
Net Weight | 260 kg |
