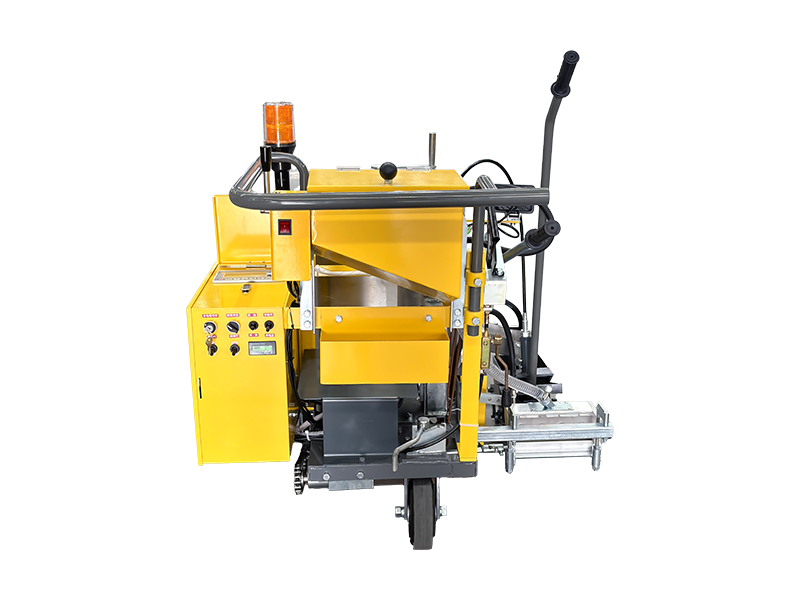

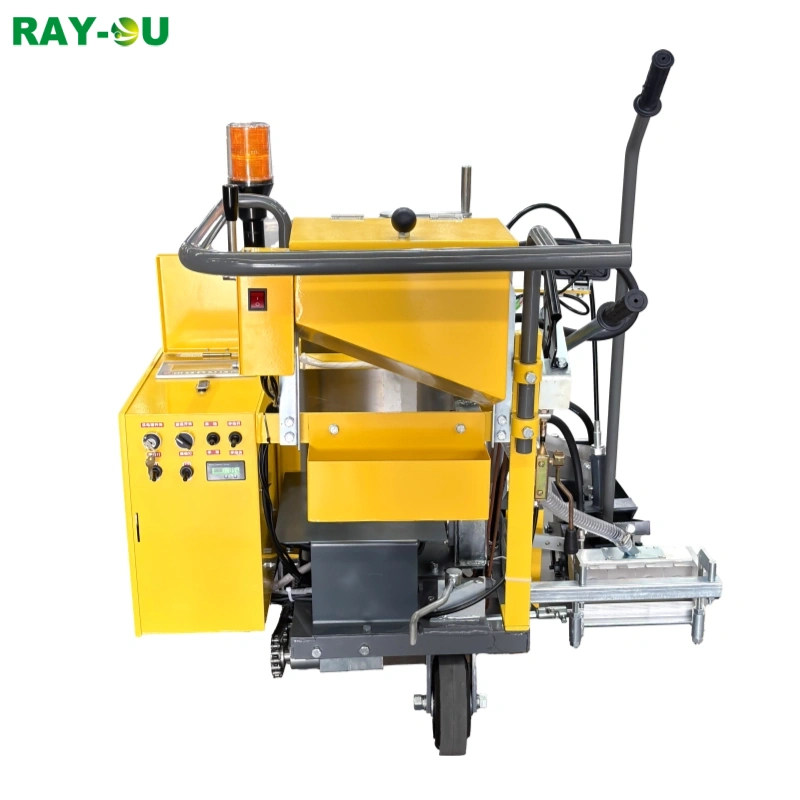

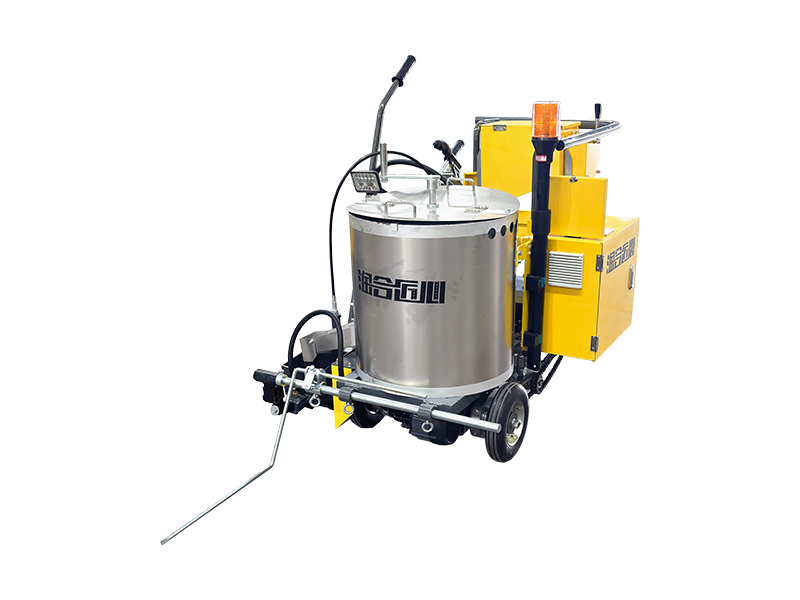

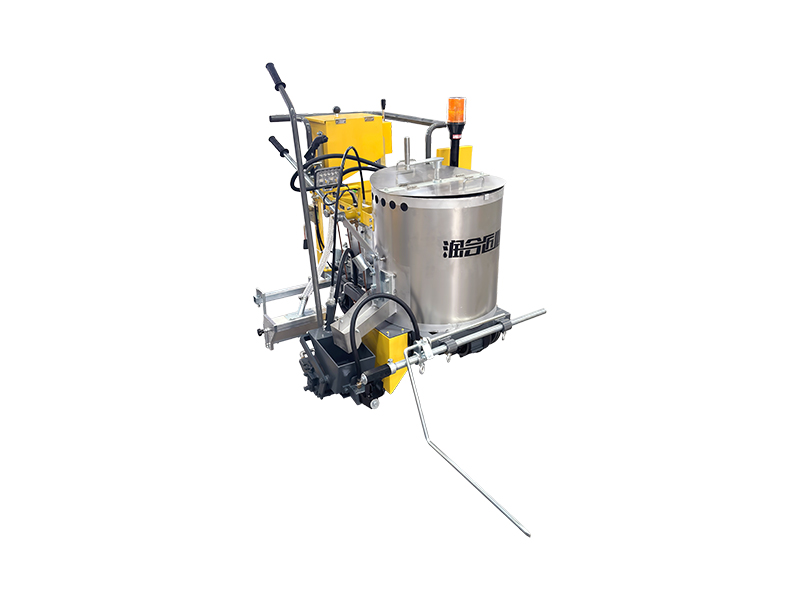

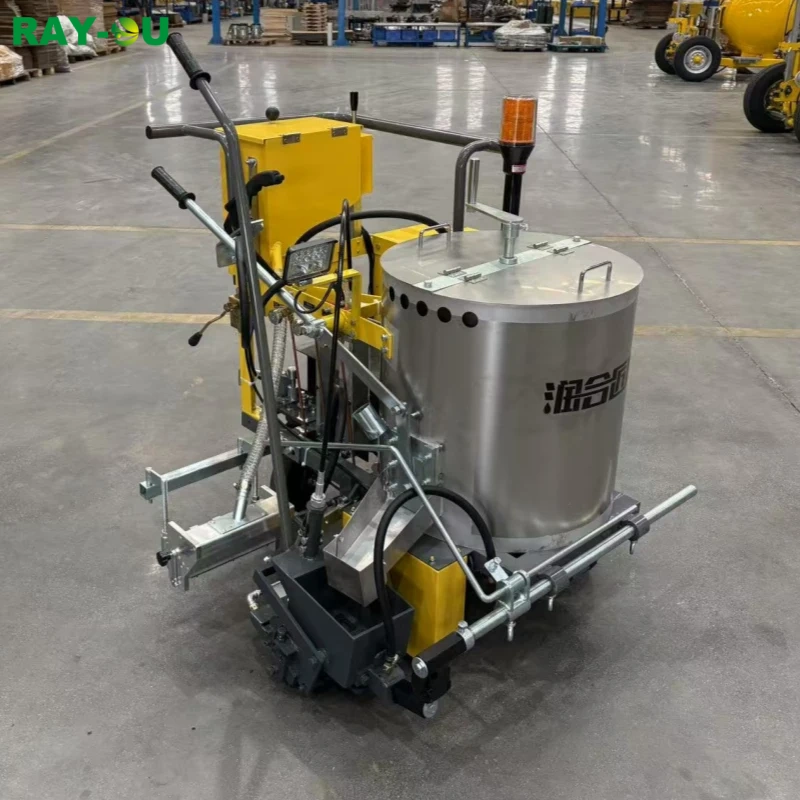

Capable of constructing rib lines and traditional straight lines with one-touch switching. The powerful motor and high-capacity lithium battery ensure extended runtime, while the differential-equipped chassis enables agile turning, delivering high construction efficiency and an excellent user experience.
Drive method | 550W electric motor |
Battery | Portable 48V/20Ah lithium battery, 8-hour runtime |
Travel speed | Forward <4km/h, reverse <3km/h, 15° gradeability |
Chassis | Dual-wheel differential, drum brakes |
Paint bucket capacity | 100kg |
Glass bead tank capacity | 15kg |
Glass bead Spreader | Adjustable spreading width and density |
Stove fuel | LPG |
Protrusion height | 0-10mm |
Marking setting | Onboard computer, one-touch switching between rib line/flat line |
Optional line width | 15,20,30,40,45cm |
Ground blade | Alloy-embedded ground blade |
Wheels | Metal hubs with heat-resistant rubber tires The rear wheel equipped with straight-line positioning device |
Dimension(LWH) | 1220 × 920 × 1100 mm |
Net weight | 150 kg |
