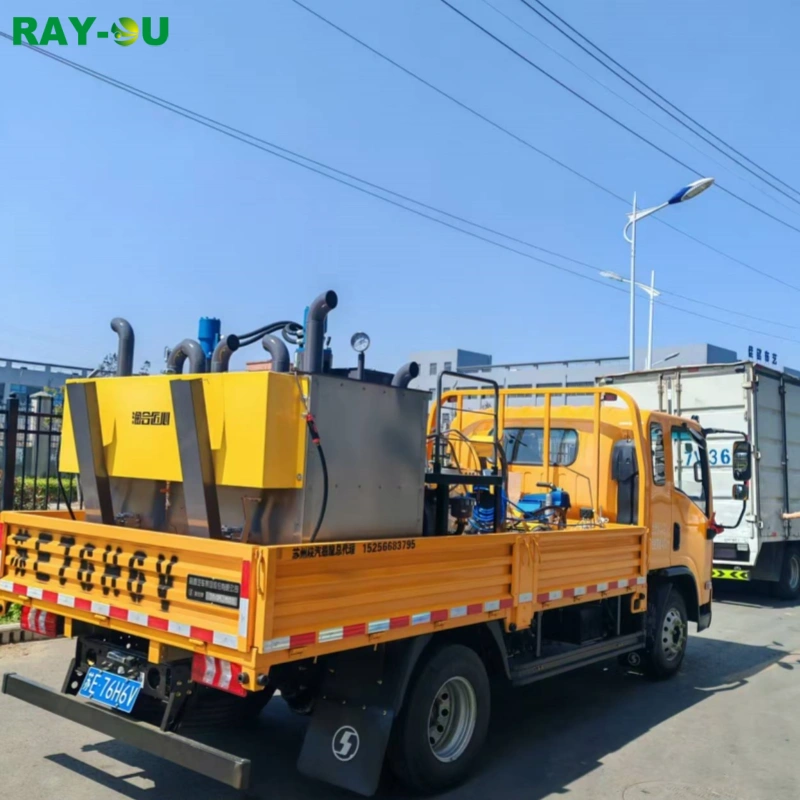

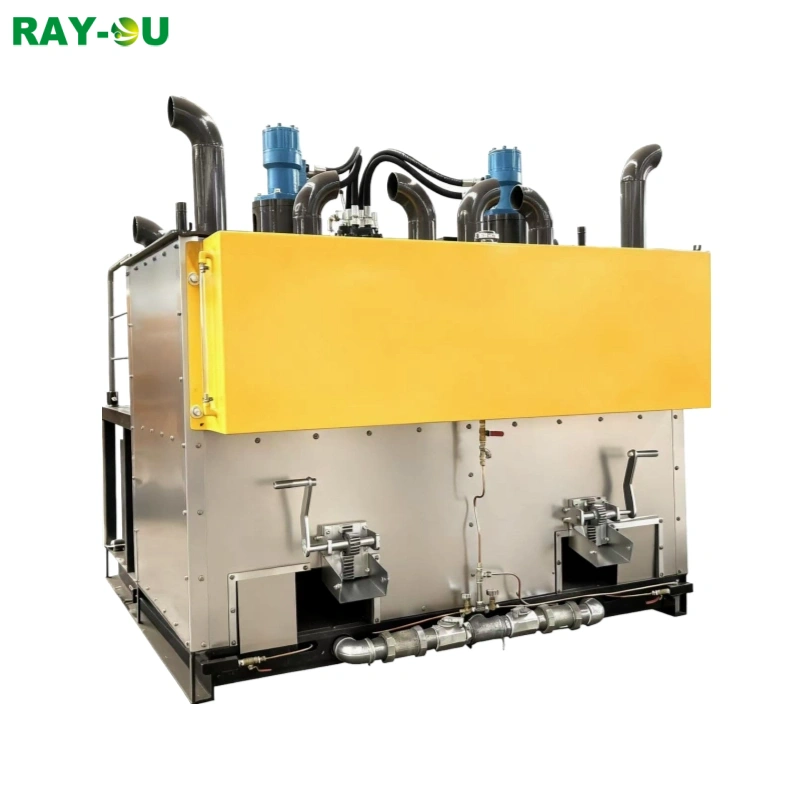

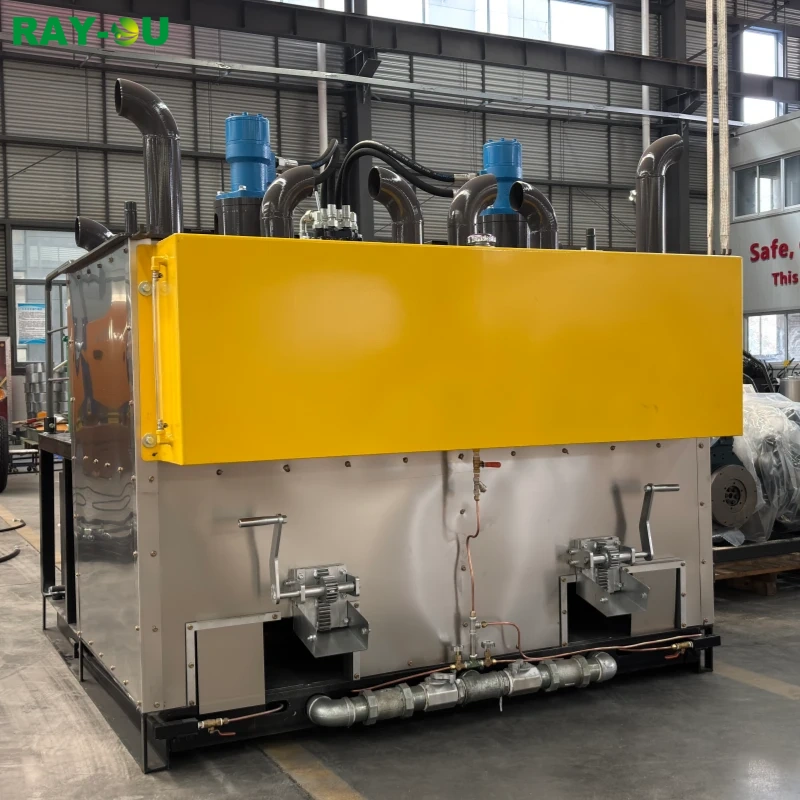

A themoplastic paint preheater capable of using either diesel fuel or LPG as fuel. In cold climates or windy regions, diesel heating ensures uninterrupted operation. A large fuel tank eliminates the need for additional space to carry fuel. The specially designed burner and high-torque hydraulic mixing device ensure faster melting of paint.
Model | DCHP-1000DG | DCHP-1200DG |
Engine | Changchai ZS1105 18HP electric start water-cooled diesel engine | |
Heating stove | Dual-fuel diesel/LPG stove | |
Mixing system | Integrated hydraulic control valve, forward/reverse mixing with overload protection | |
External structure | Frame structure, 1.2mm stainless steel outer shell | |
Internal structure | Two independent enclosed combustion chambers are equipped with thermal insulation layers | |
Paint tank | 2 x 500kg capacity, suspended installation | 2 x 600kg capacity, suspended installation |
Bottom material | 10mm high-carbon alloy steel | |
Hydraulic oil tank | 70L capacity; use 46-grade anti-wear hydraulic oil | |
Diesel tank | 130L with level gauge | |
Dimension(LPG) | 1900×1750×1550mm | 1900×1750×1650mm |
Net weight | 1200kg | 1250kg |
