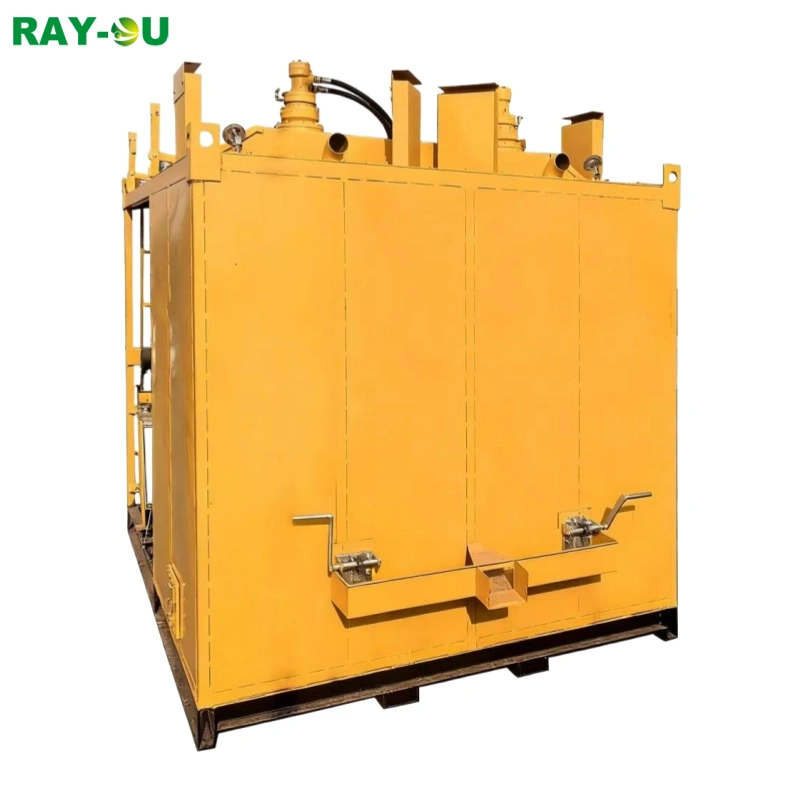

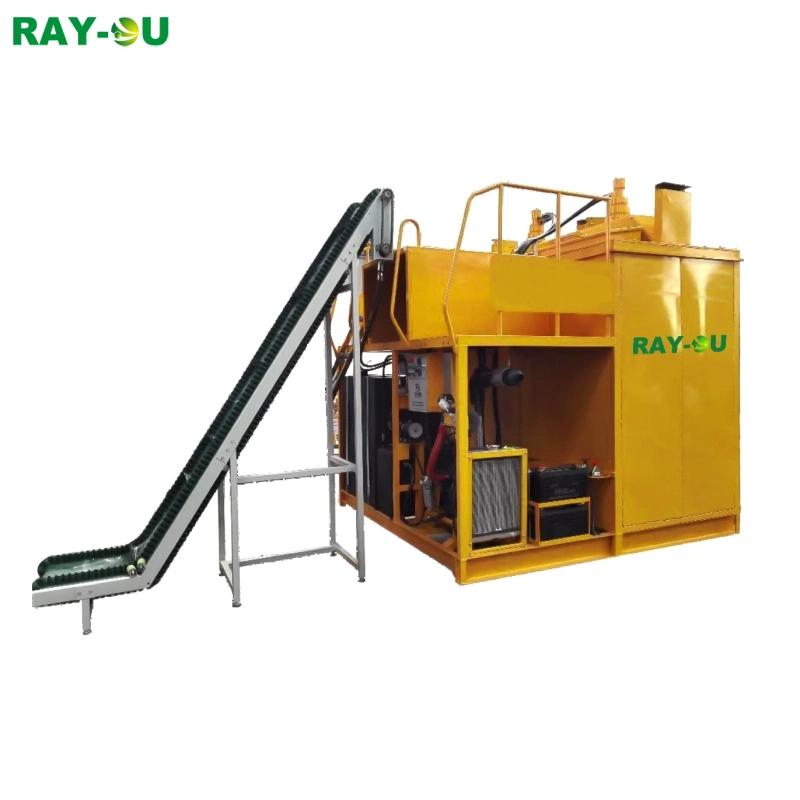

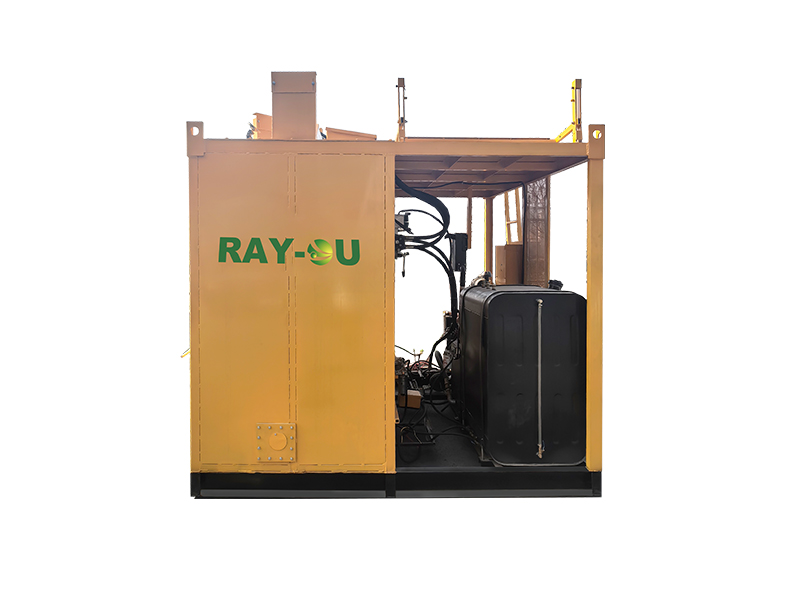

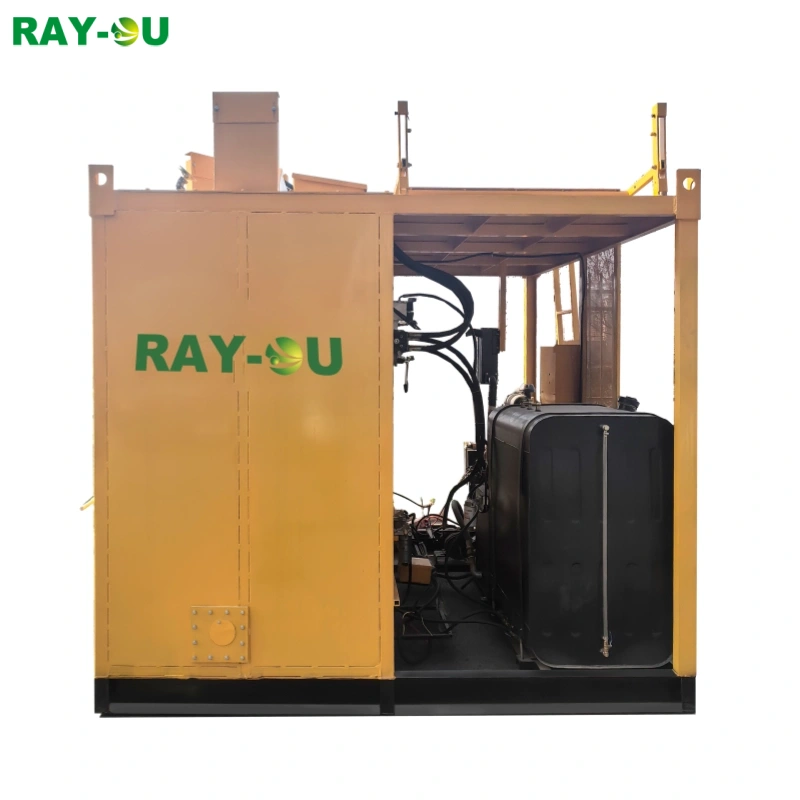

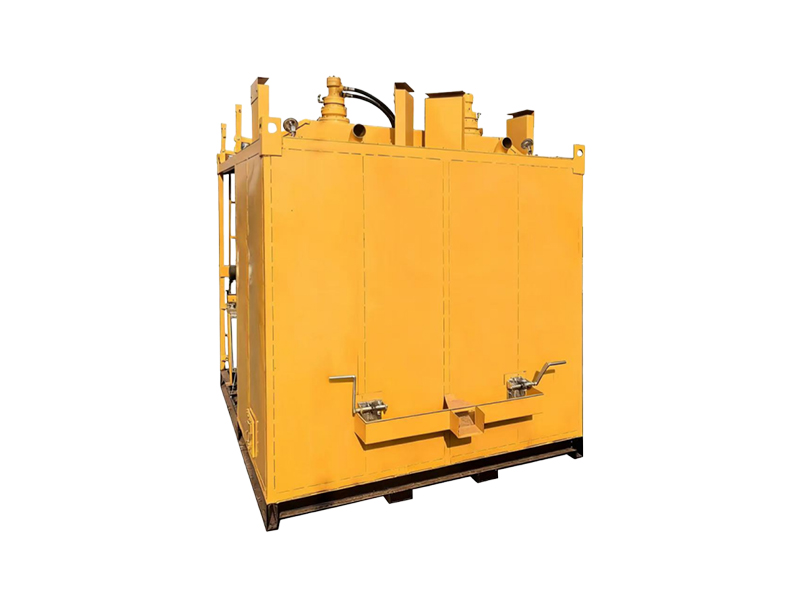

A paint preheater specifically designed for large self-propelled line marking machines. Its uniquely engineered combustion chamber ensures uniform heating of the paint. The large internal capacity guarantees continuous paint supply. With excellent thermal insulation, the unit retains residual heat of 140-180°C even after 18 hours of shutdown, enabling rapid restart the next day.
Engine | Kubota V1505D 28kW diesel engine |
Diesel tank | 350L |
Hydraulic oil Tank | 200L |
Electrical system | DC12V lead-acid battery, generator charging |
Heating stove | Beckett diesel burner |
Mixing system | Integrated hydraulic control valve, forward/reverse mixing with overload protection |
Internal structure | Dual independent combustion chambers, filled with insulation Maintain 140–180℃ for 18 hours |
Paint capacity | 3000kg×2 |
Dimension(LWH) | 2700 × 2350 × 2700 mm |
Net weight | 4000 kg |
