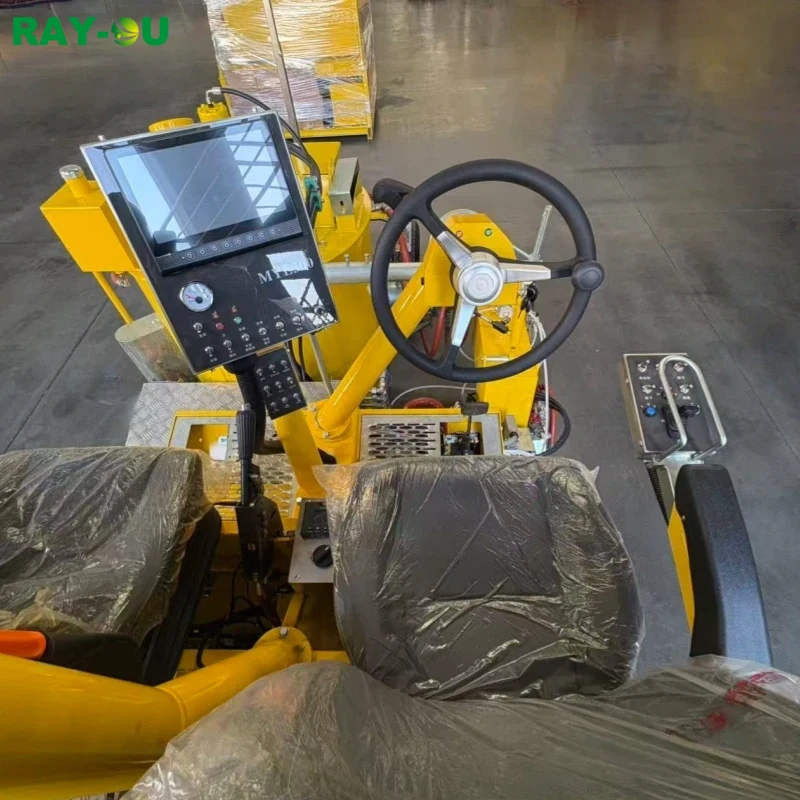

Reliable engine with robust power and outstanding hill-climbing capability. The cab's computer panel monitors all machine data and allows setting of line types and parameters. The machine's travel controller is located at the armrest, offering low-delay directional control and braking. The entire machine undergoes anti-corrosion treatment, while the engine compartment features noise reduction.
Engine | Kubota 47kW four-cylinder water-cooled diesel engine |
Hydraulic system | Danfoss |
Travel speed | 0-10km/h |
Max gradeability | 11° |
Air compressor | 0.49m³/min at 0.8MPa |
Heating method | Beckett diesel burner, thermal oil circulation insulation, automatic temperature control |
Paint tank capacity | 300L(500kg) |
Glass bead tank | 150L pressurized tank |

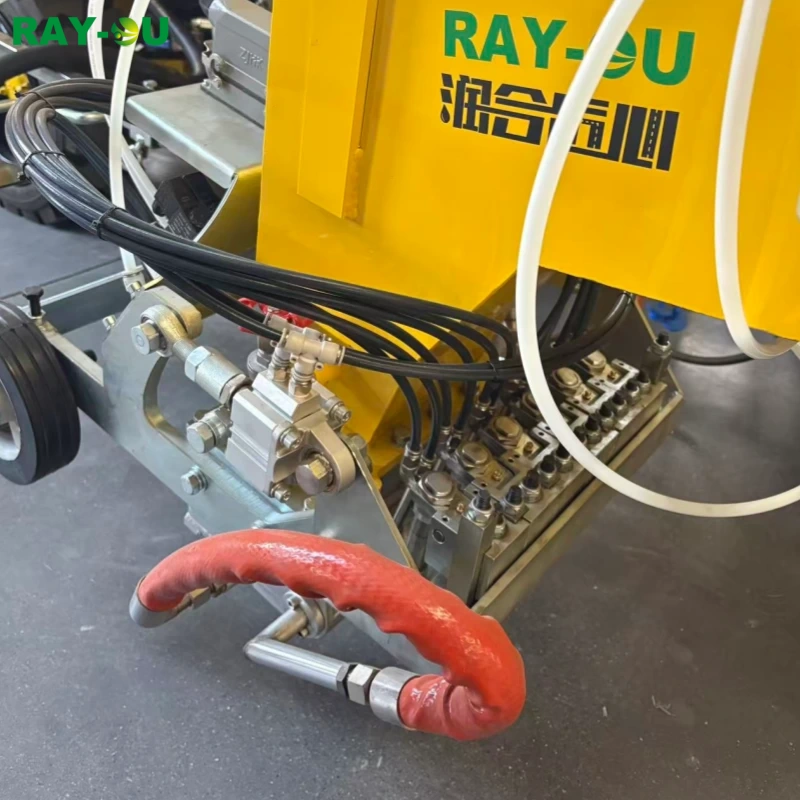

Line width | Standard 30cm Each 5cm section constitutes one control unit, totaling 6 control units |
Marking mode | Flat lines, checkerboard lines, staircase lines, piano lines, and other pre-programmed markings |
Marking setting | Select the line mode on the computer panel and set the marking parameters |
Construction efficiency | 300m²/h |
Dimension(LWH) | 5700×2200×2750mm |
Net weight | 3700kg |
