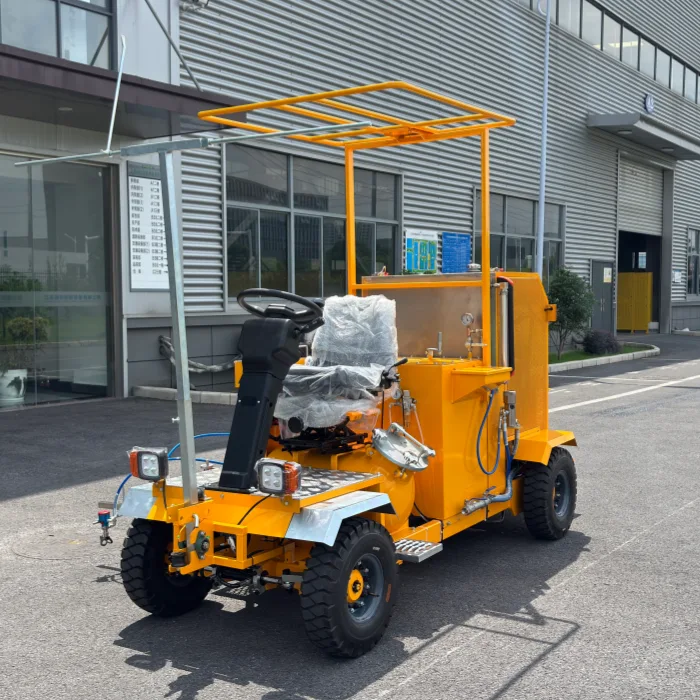

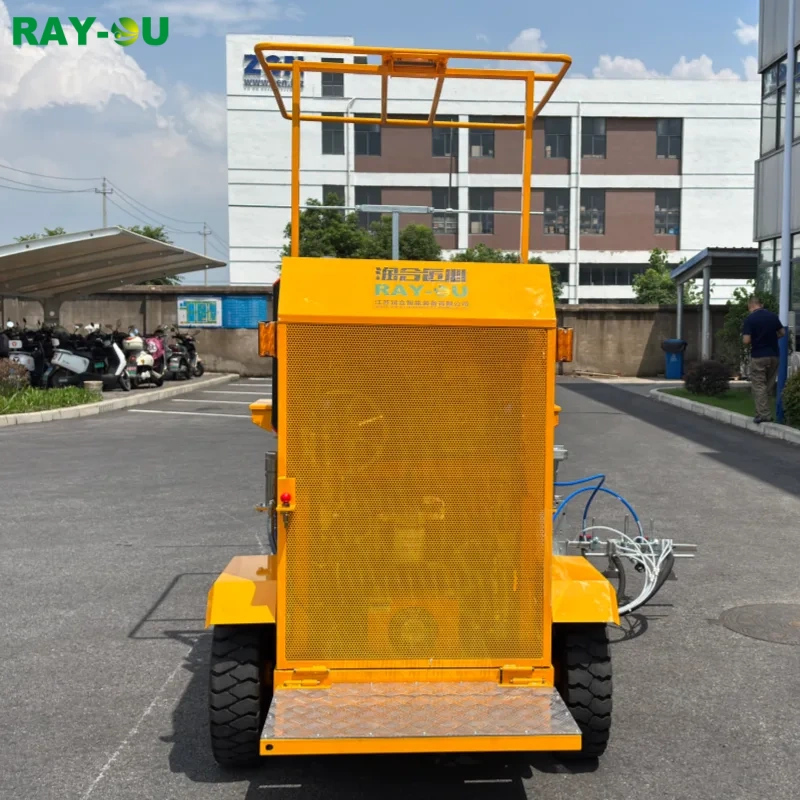

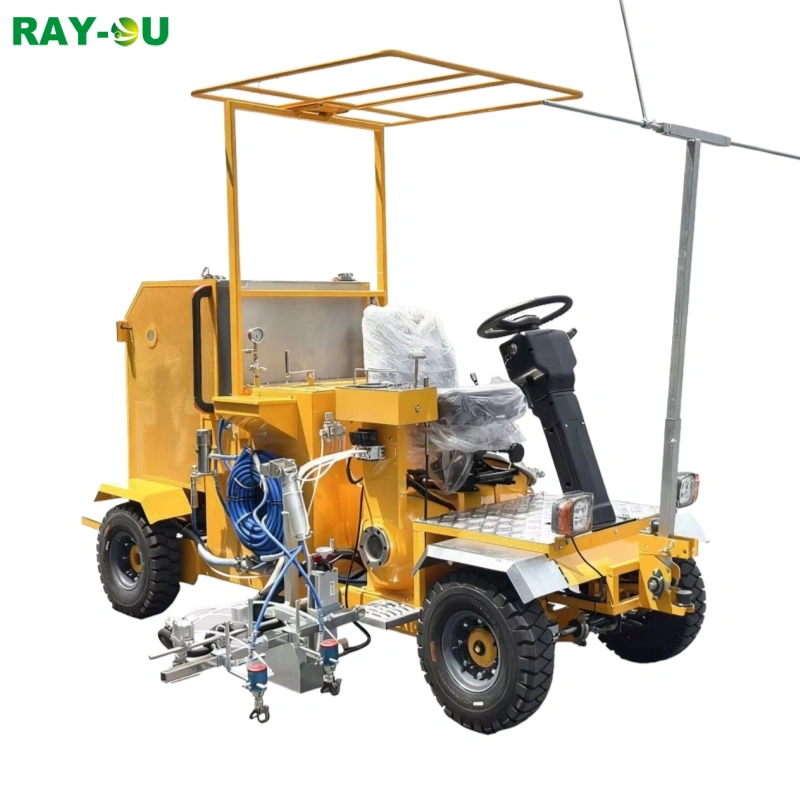

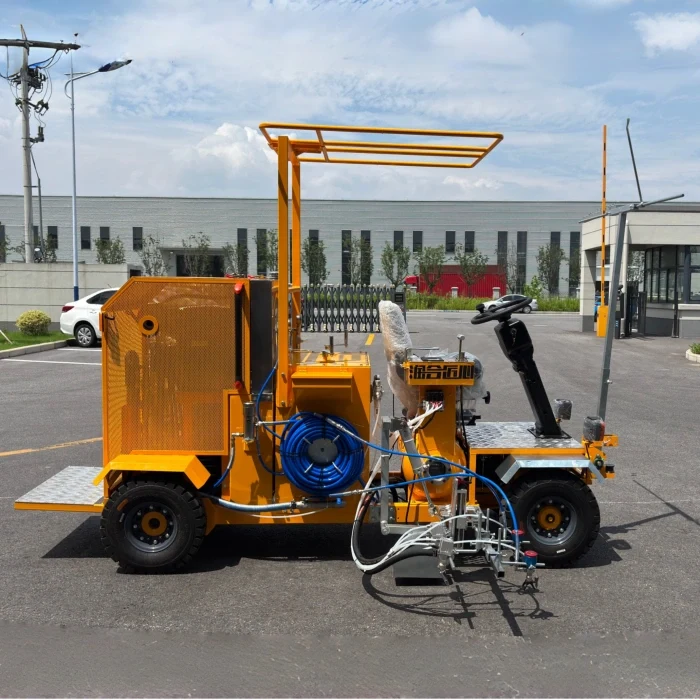

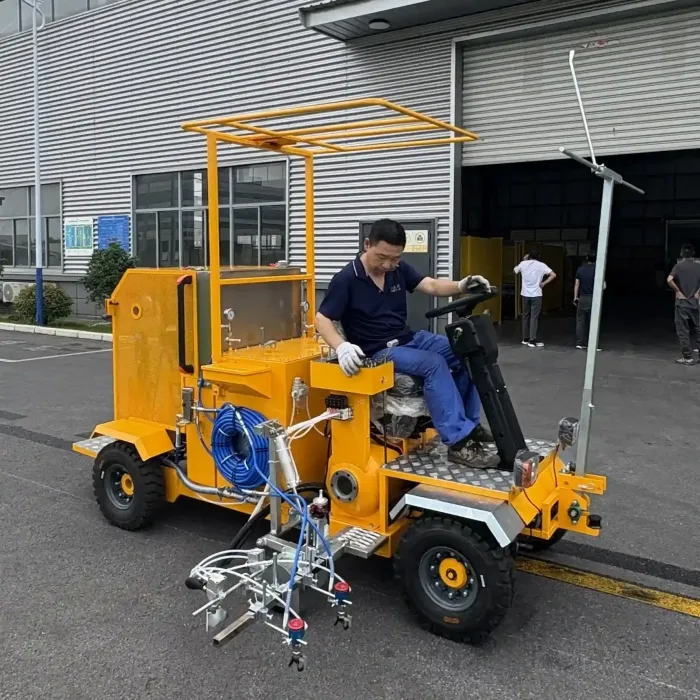

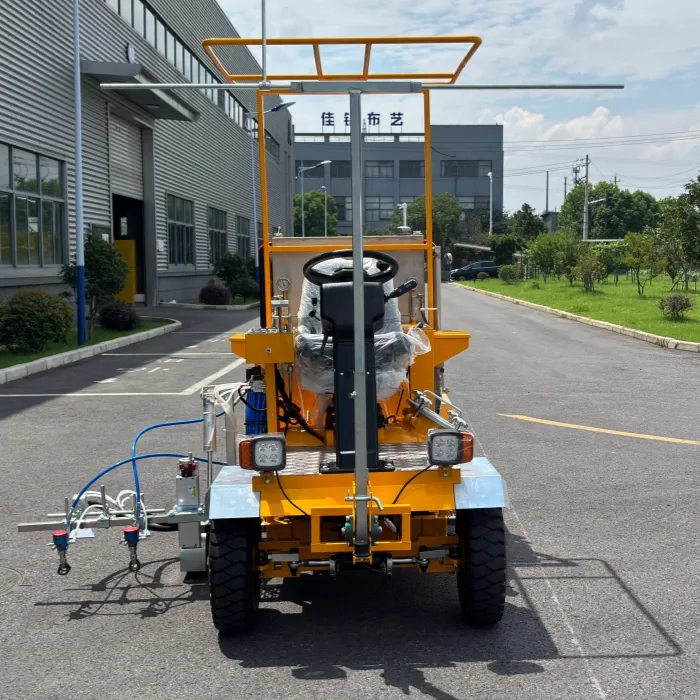

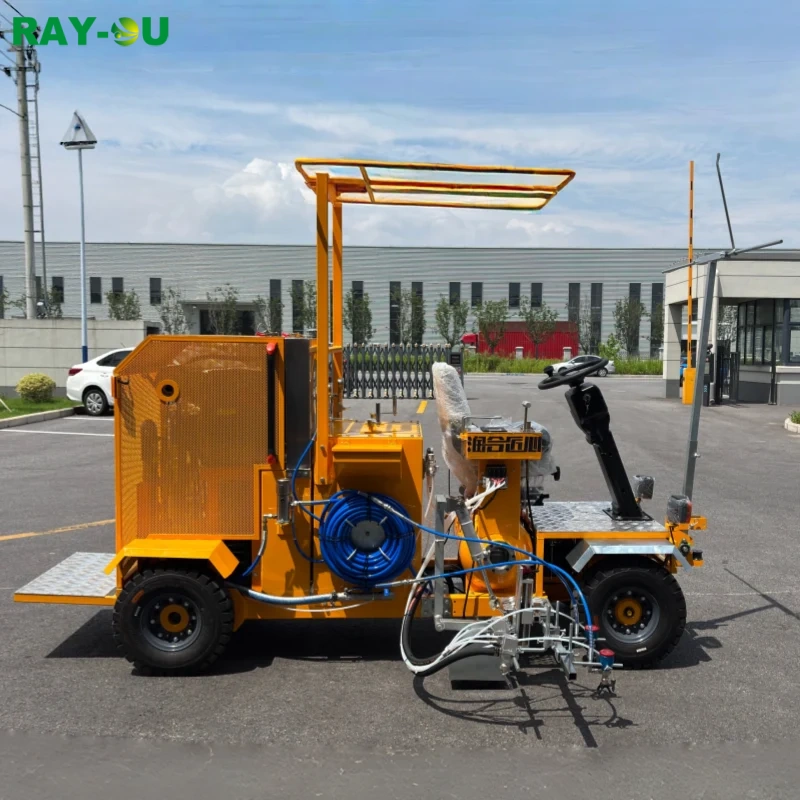

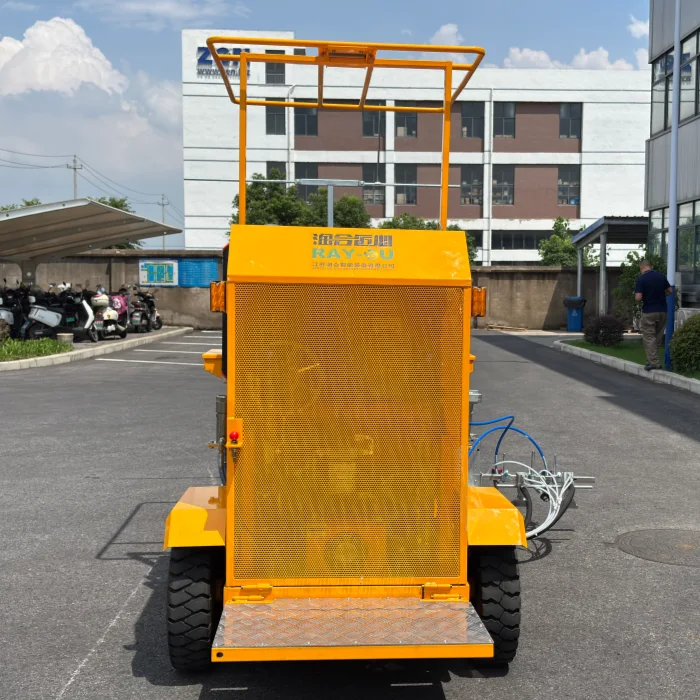

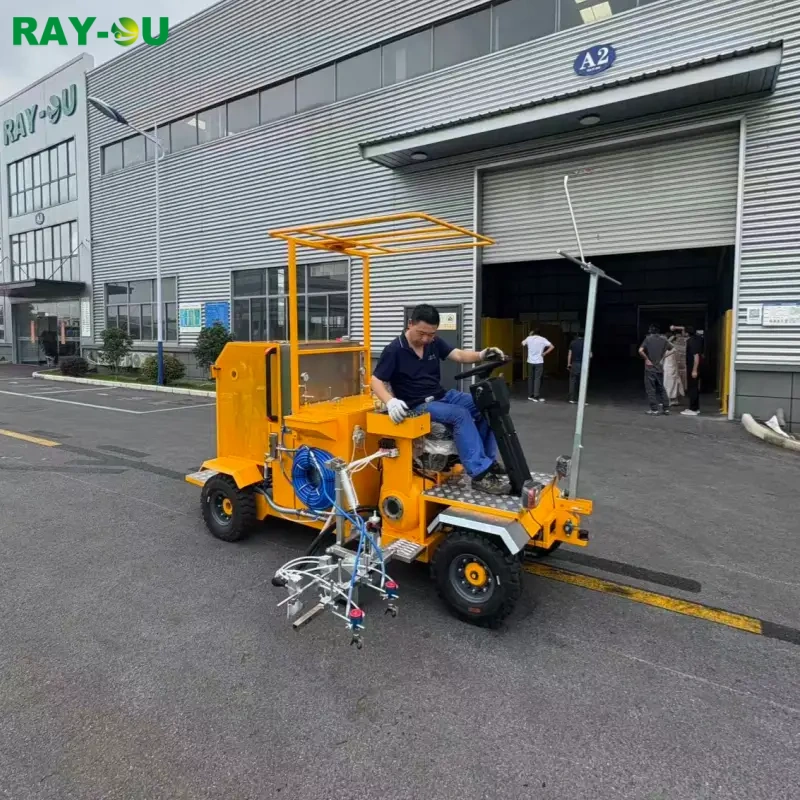

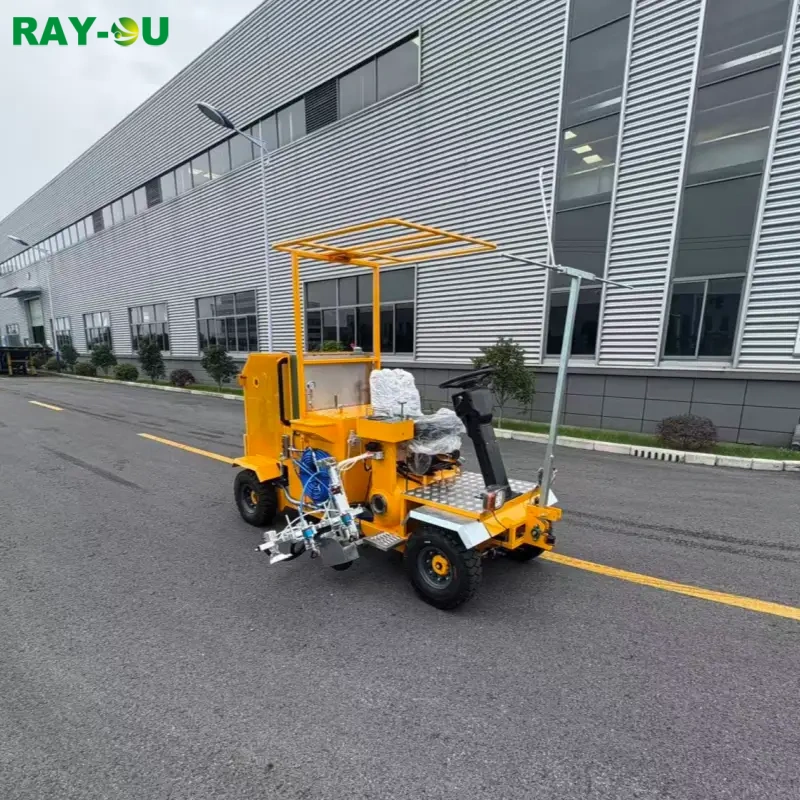

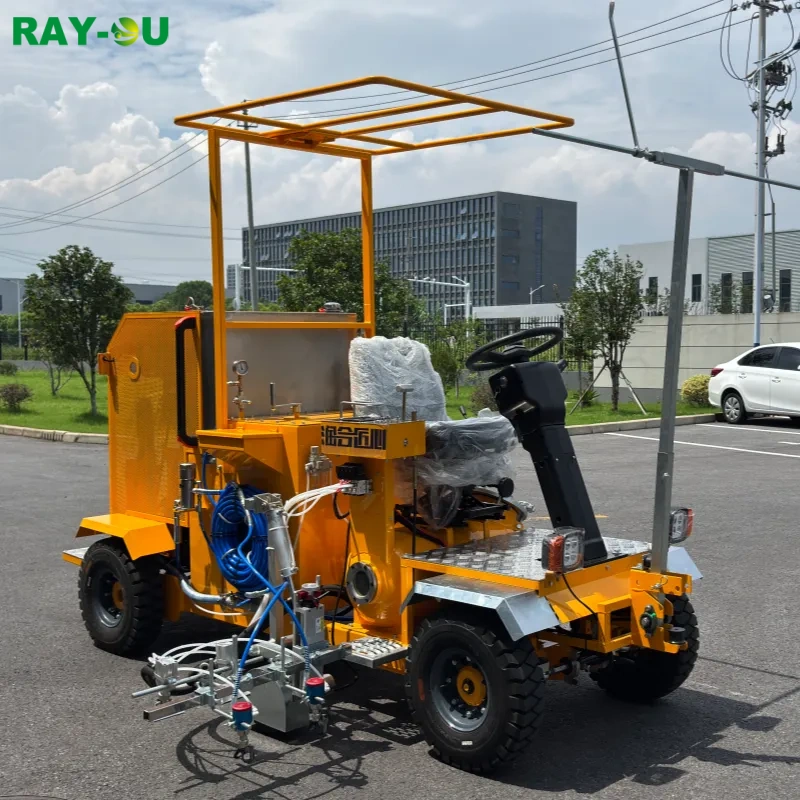

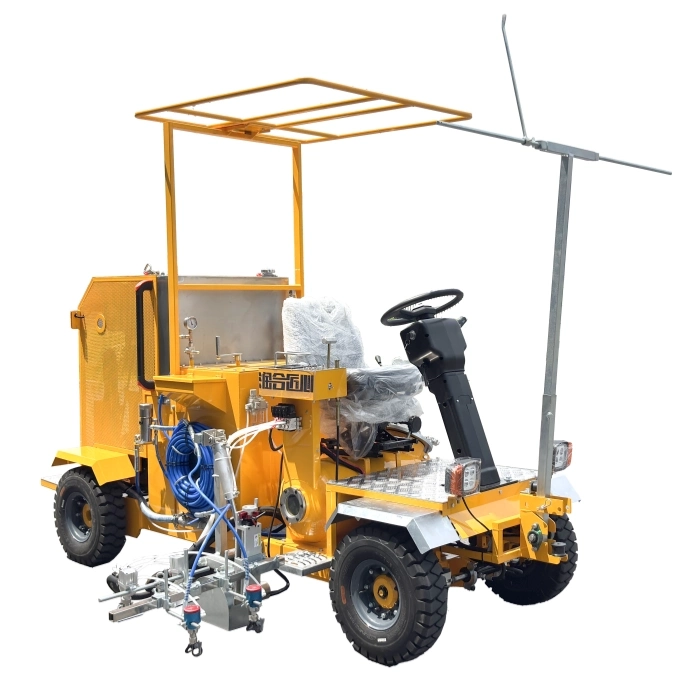

The higher spray flow rate and flexible mobility enable the machine to handle a variety of complex road conditions. Its compact size and excellent operator visibility are key features. Equipped with an integrated computer panel for control, the machine employs modular assembly for components, facilitating maintenance.Cold paint spraying and 1:1 two-component spraying can be performed.
Gasoline engine | Honda GX690(13kW) |
Fuel tank | 50L |
Hydraulic system | Danfoss |
Travel speed | 0-8km/h |
Max gradeability | 11° |
Air compressor | 0.18m³/min (0.8MPa) |
| Pump | 2 hydraulic plunger pumps |
Maximum flow rate | 9L × 2 |
Working pressure | 10-20MPa |
Spray gun | 2 automatic and 1 manual |
Spraying width | 50-600mm |
Paint tank | 190L |
Glass bead tank | 50L pressurized tank |
Hydraulic oil tank | 80L (drive system) |
Hydraulic oil tank | 12L（Hydraulic pump） |
Dimension(LWH) | 3000×1980×2300mm |
Net weight | 1100kg |
