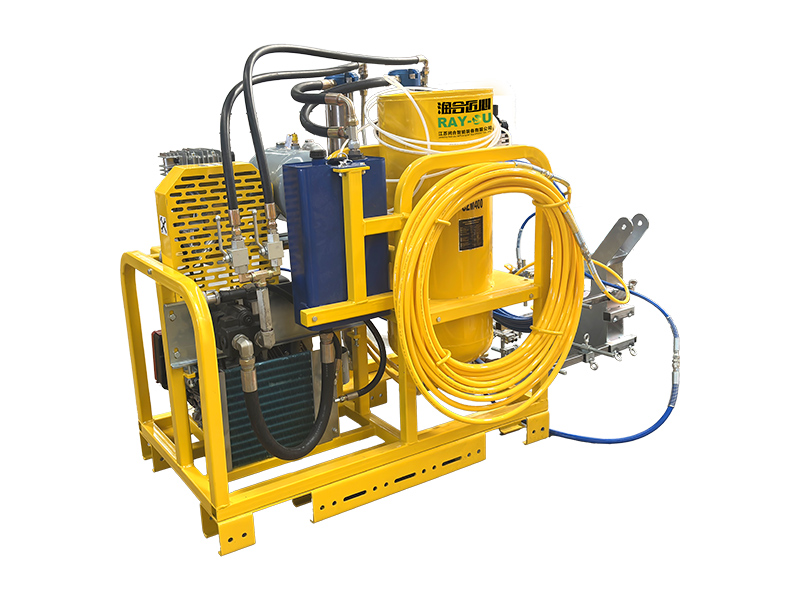

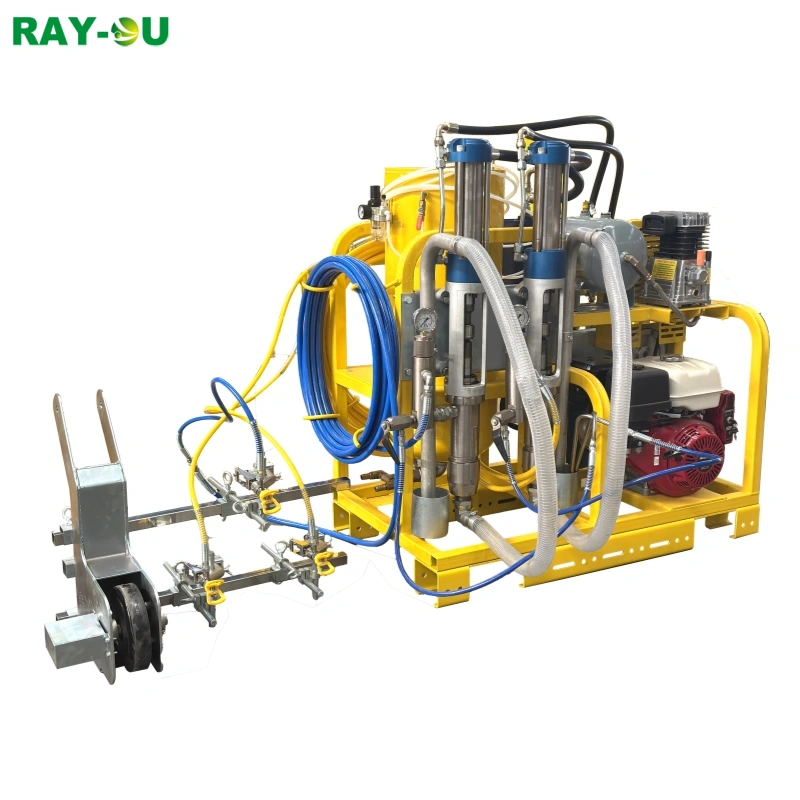

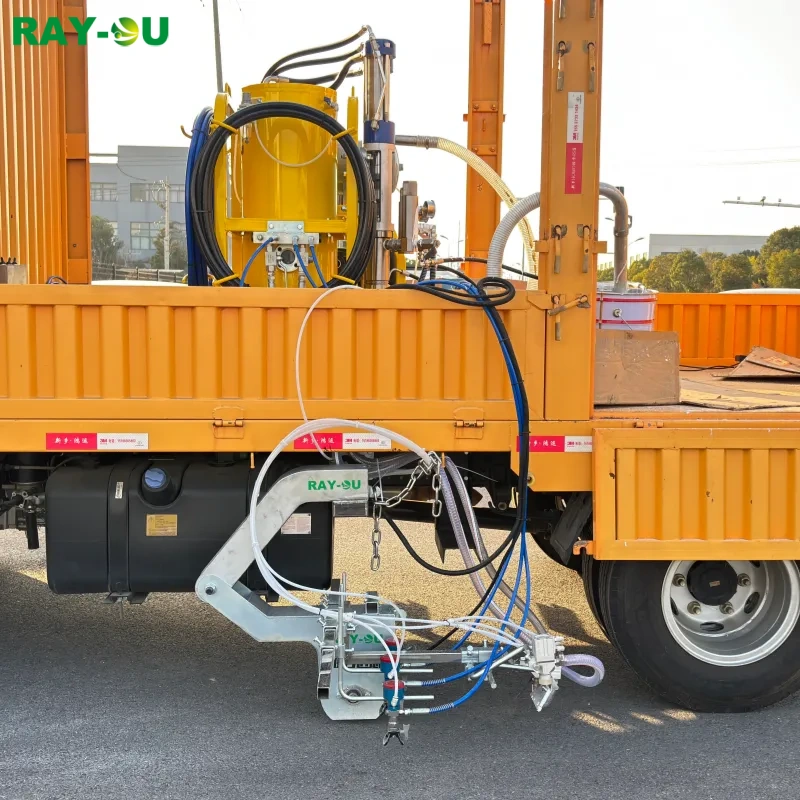

Vehicle-mounted cold spray line marking machine. The onboard computer configures the automatic spray gun to apply dashed lines automatically. Adjusting the spray gun bracket enables two-component spray line marking. Optional accessories include a power unit, hydraulic mixing system, and pre-marking system.
Standard configuration | Dual pumps, 4 automatic spray guns, 1 manual spray gun, 4 glass beads spray guns |
Optional configuration | Split-type power station Two 100L stainless steel paint tanks with hydraulic mixing systems |
Gasoline engine | Honda GX390(13HP) |
Pumps | Built-in reversible hydraulic plunger pumps ×2 |
Working pressure | 10-15MPa |
Max pressure | 25MPa |
Max flow rate | 20L/min ×2 |
Glass bead tank | 86L pressurized glass bead tank |
Line thickness | 0.2-0.6mm |
Line width | 50-1200mm |
Dimension(LWH) | 1300 × 800 × 1270mm |
Net weight | 450kg |
